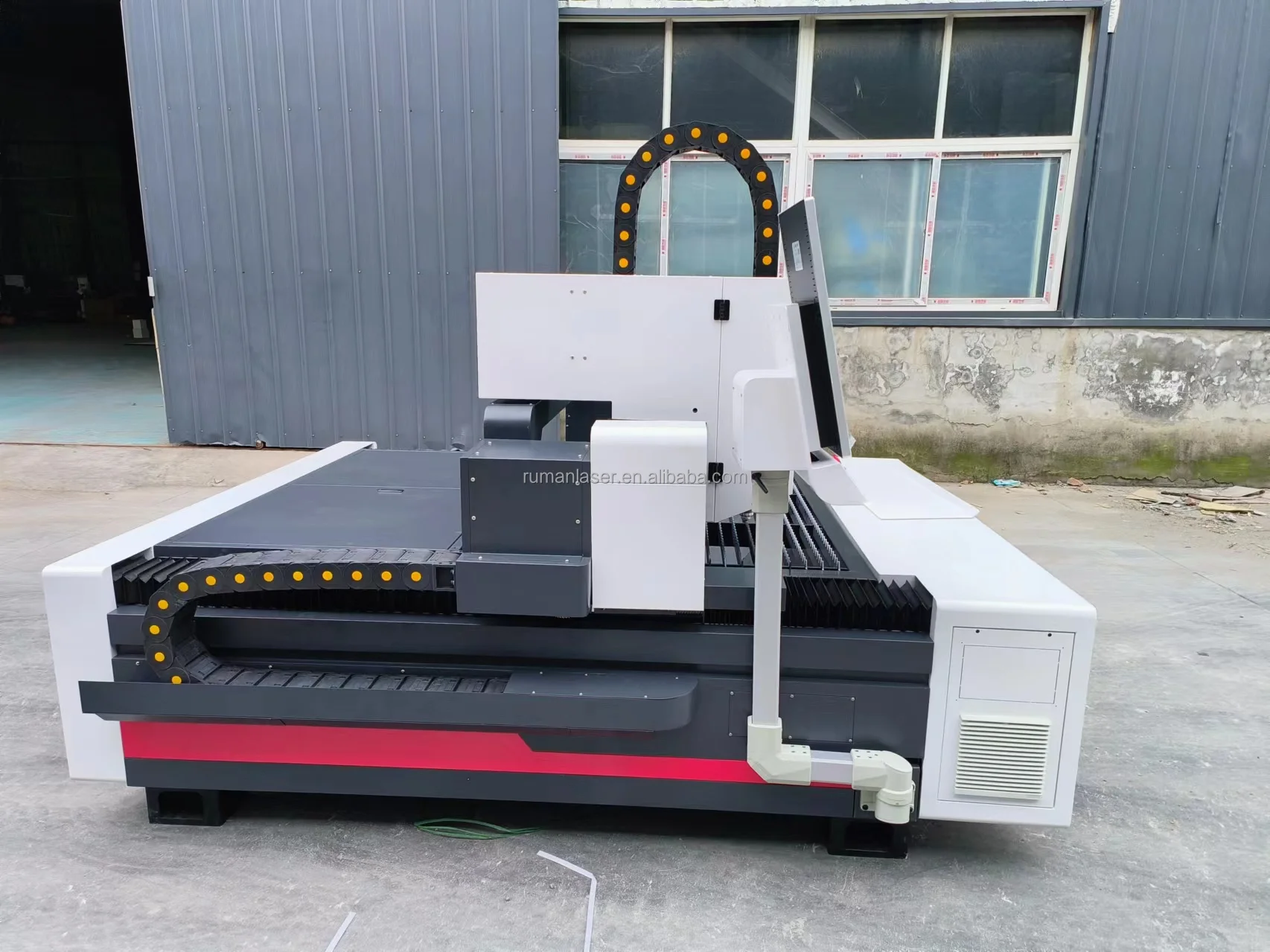

1390 Fiber Laser Cutting Machine 1500w 3000w Mini Small Metal Fiber Cutting
Ruman Laser Fiber Cutting Machine 130*90cm working size
Laser Cutting machine is widely used in cutting and shaping for metal plates, pipes (pipe cutting plus pipe cutting device can be), stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
|
MACHINE MODEL
|
1390 fiber cutting machine
|
|
Machine frame
|
New design of our company
CE standard Heavy duty Plate iron welded machine frame
Cast Aluminum gantry
|
|
Controller
|
raytools cutting system + raytools software Controller
Industrial CPU + cantilever #independent controller box #DSP
|
|
Laser system
|
Fiber laser generator MAX RAYCUS
Hand laser RAYTOOLS cutting head
|
|
Transmission system
|
Taiwan Hiwin guide rail
X 25 Y 30 Z：20
Taiwan YYC gear transmission
Z axis TBI ball screw transmission
|
|
Driver system
|
Japan Fuji servo motor and driver
X：750W Y:850W Z 750W brake
Japanese Shimpo Reducer
|
|
Auxiliary equipment
|
SA Water chiller #Automatic lubrication system
|
|
Other important parts
|
Solenoid valve to control gas switch
Japan SMC Proportional valve, control gas pressure
France Schneider Electric Device
Software Limited switch +Hard Limited switch #Other tools
|
|
Consumable parts
|
10xCutting nozzle #5xProtective Mirrors
|
|
Service
|
Manual +Video #Two-year warranty
24 hours online service
|
|
Payment
|
T/T 30% advance payment +70% balance payment before delivery
|
|
Model
|
Ruman Fiber Cutting Machin 1390
|
|
Laser Type
|
Fiber Laser
|
|
Laser Wavelength
|
1060nm
|
|
Max.cutting speed
|
0-30m/min(Depending on the material and thickness)
|
|
X, Y, Z Axis Orientation Precision
|
≤±0.05mm/m
|
|
X, Y, Z Axis Repeat Precision
|
≤±0.03mm /m
|
|
Min line width
|
≤0.15mm
|
|
Maximum Empty Running Speed
|
120m/min
|
|
Driving way
|
Imported servo motor
|
|
Transmission way
|
Y-axis import gear rack double driver, X-axis imported ball screw
|
|
Cooling System
|
Water Cooling
|
|
Continuous working time
|
24 Hours
|
|
Power requirements
|
380V/3 Phases /50Hz or 60Hz
|
|
Packing size (L*W*H)
|
4500x2300x1800mm
|
Fiber laser cutting machine work show
