PRODUCT DETAILS

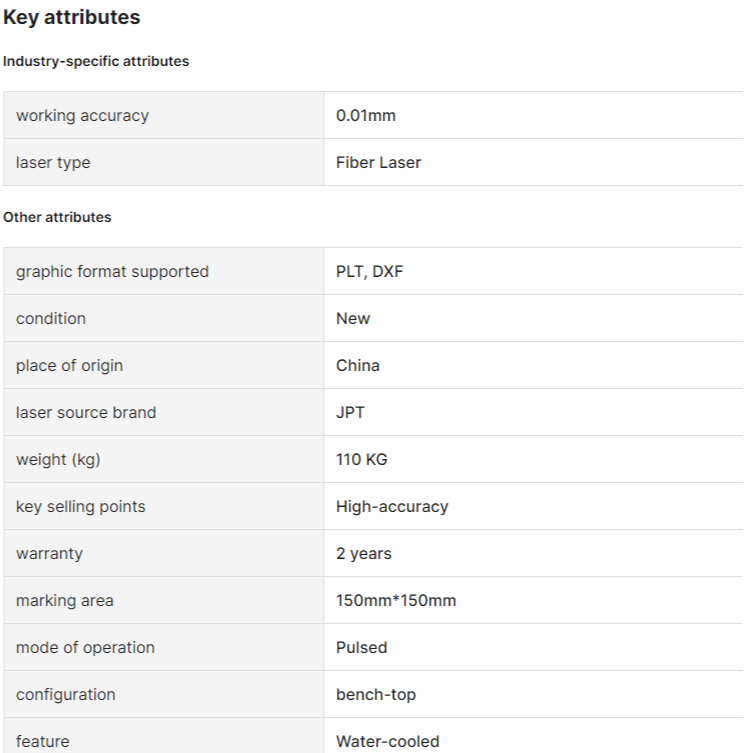

UV资料 UV资料2

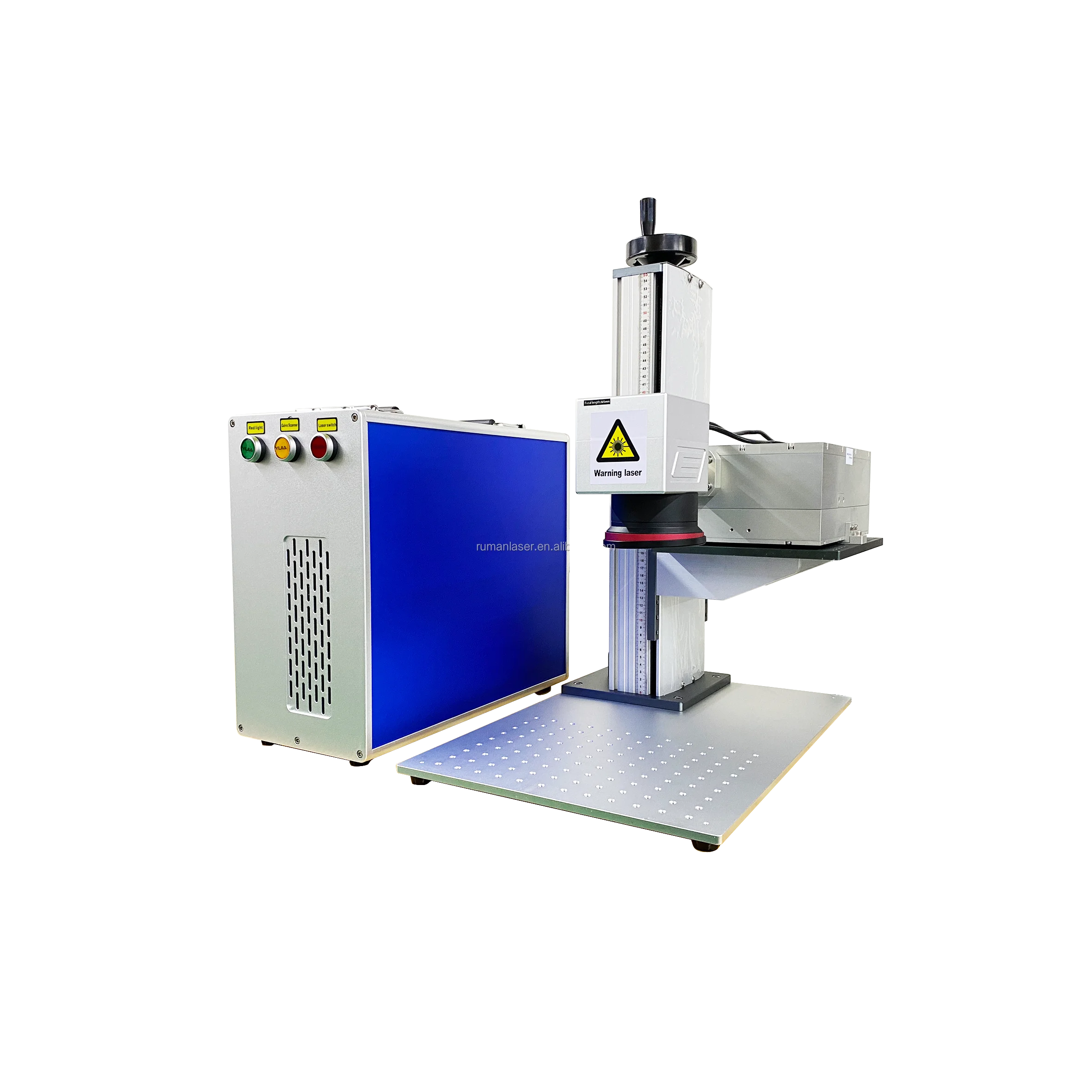

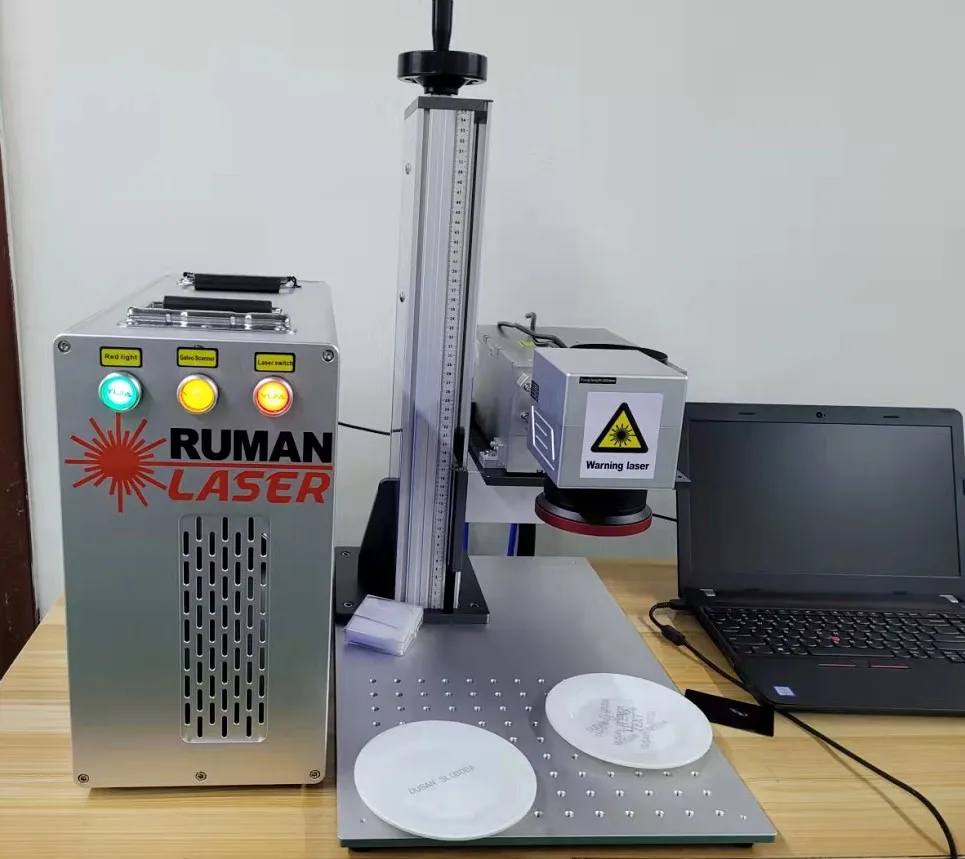

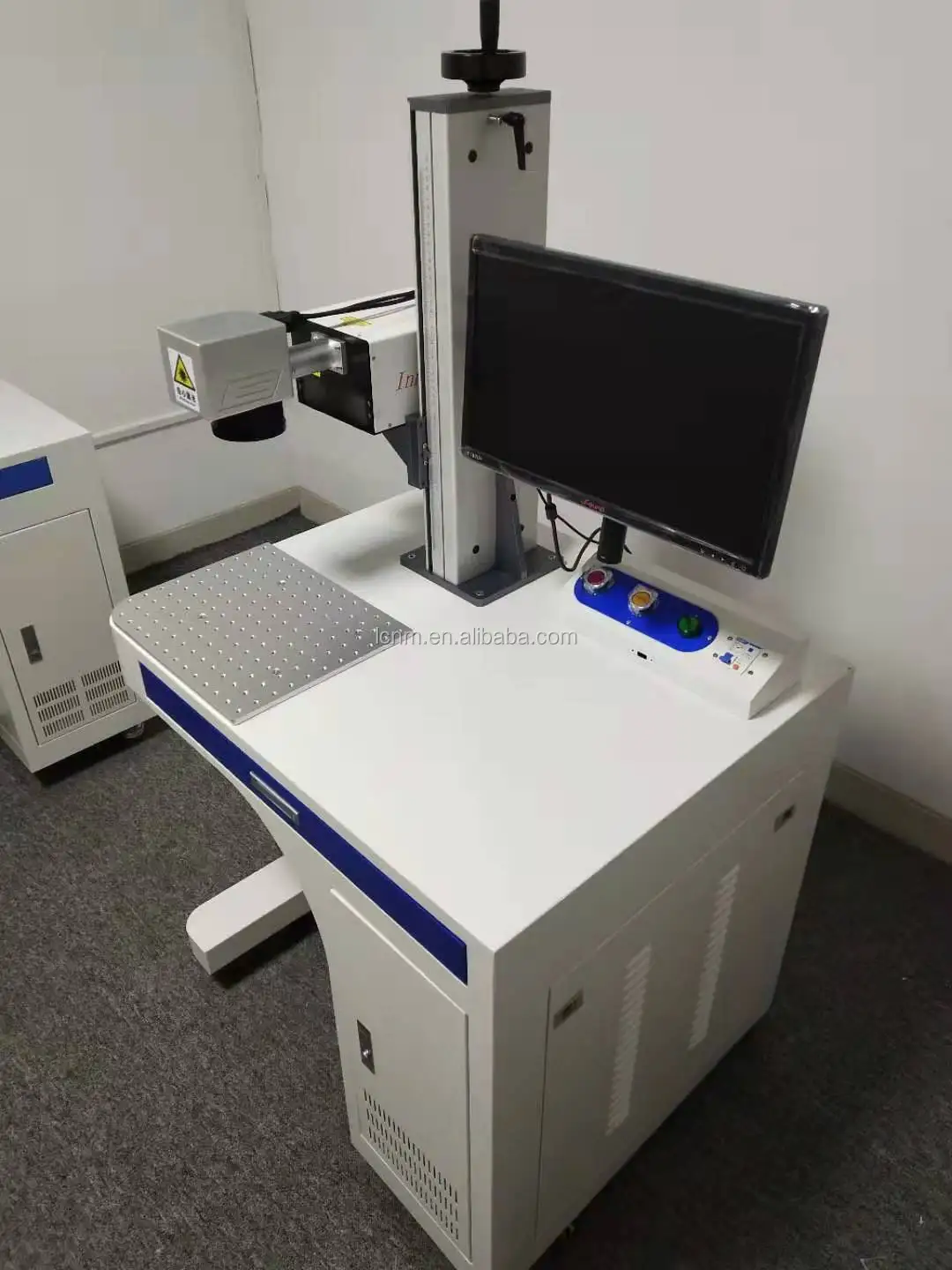

jpt 3w 5w laser uv laser marking machine

Machine configuration:

A) INNGU/JPT laser.

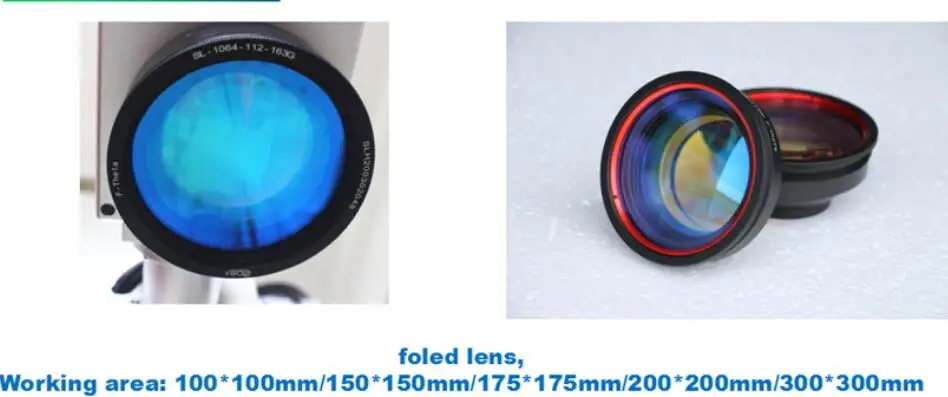

B) Nanjing wavelength (OPEX) field mirror,

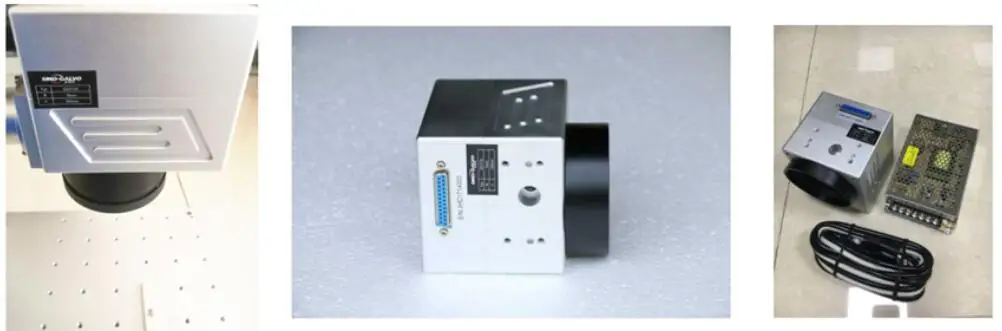

C) SINO-GALVO galvanometer,
D) filter (many manufacturers are not or very small),

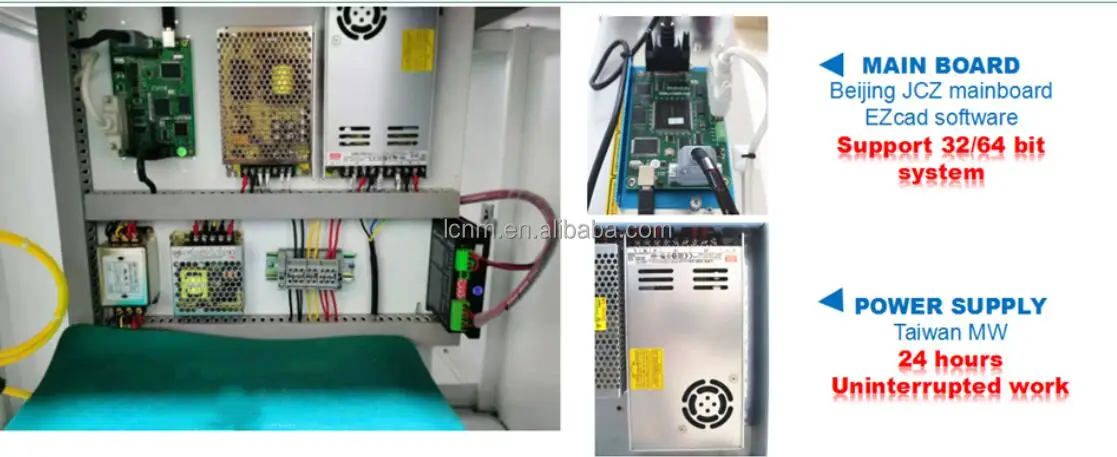

E) Taiwan Mingwei (MW) power supply,
F) Golden Orange Board (supports genuine software, supports system-wide operation)
G) Double red light assisted focusing

Product Overview

The UV Fiber Laser Marking Machine is designed for high-precision marking on a variety of materials, including metals, ceramics, glass, and plastics. It is widely used in industries such as electronics, jewelry, automotive, and medical devices due to its versatility and efficiency.

Features

High Speed with Galvanometer: Equipped with a high-speed galvanometer scanning system, ensuring fast and precise marking.
Compact Design: Small volume and lightweight, making it easy to integrate into production lines or workspaces.
Low Power Consumption: The machine operates with a power consumption of less than 500W, making it energy-efficient.
Complete Water Cooling: Utilizes a water cooling system to maintain stable performance, even under continuous operation.
Environmental Resistance: Immune to severe environmental conditions and temperature changes, ensuring consistent performance.
Compatibility with Image Processing Functions: Supports common image processing functions, allowing for complex and high-quality marking.
Feature-Rich Software Design: User-friendly software with a wide range of functions, including graphic editing, text marking, and barcode generation.
Stability and Reliability: The light path system and control system are designed for high stability reliability and, ensuring long-term operation without degradation in performance.
High-Quality Fiber Lasers: Uses imported original fiber lasers, ensuring consistent and high-quality marking results.

Main Performance Parameters

Laser Module: Guoke
Laser Power: 3W, 5W, 10W, 15W
Wavelength: 355nm
Standard Marking Scope: 180mm × 180mm
Minimum Line Width: 0.005mm
Minimum Character Size: 0.01mm
Cooling Mode: Water Cooling
Power Supply: 220V/50Hz/10A
Pulse Width: 10-50ns

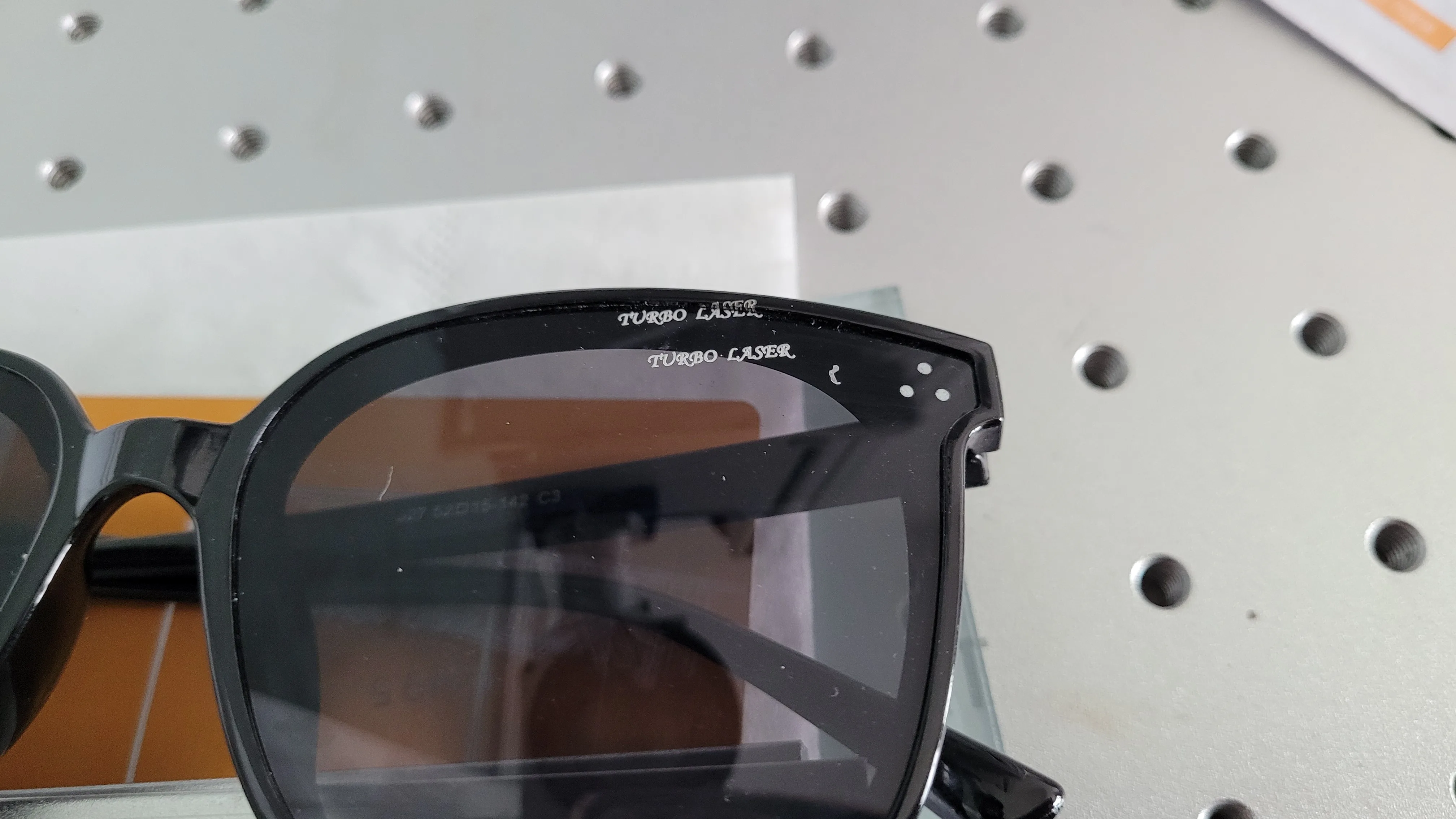

Applicable Materials

The UV Fiber Laser Marking Machine is suitable for marking on a wide range of materials, including:

Gold
Silicon Wafer
Silver
Ceramic

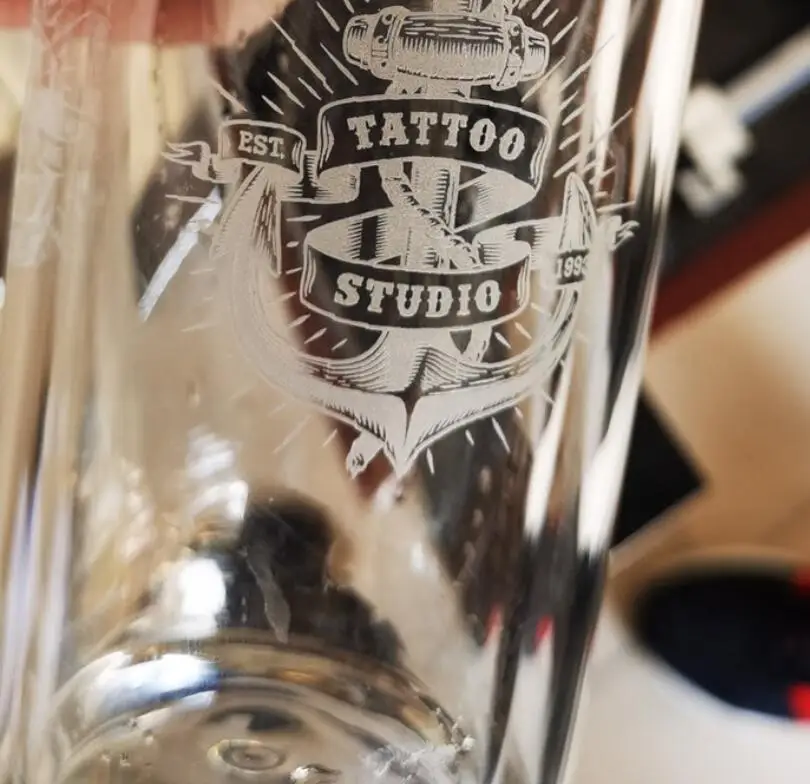

Glass
Plastic
Stone
Copper
Leather

Applications

This machine is ideal for applications such as:

Electronics manufacturing (e.g., marking on PCBs, microchips)
Jewelry engraving (e.g., gold, silver)
Medical device marking (e.g., stainless steel, ceramic components)
Automotive parts marking (e.g., engine components, plastic parts)
General industrial marking (e.g., glass, stone, leather)

Advantages

High Precision: Capable of marking extremely fine details with a minimum line width of 0.005mm.
Versatility: Suitable for both metal and non-metal materials.
Energy Efficiency: Low power consumption and water cooling system reduce operational costs.
Durability: High-quality components and robust design ensure long-term reliability.

Advantage:

1. with particular less pulse width (<20ns@30k)
2. Laser wavelength 354.7um
3. Repetition frequency coverage area width (monopulse can be 200HKZ).
4. High optical quality m2≤1.2
5. Full-digital intelligent power control
6. RS232 external control laser device

Software features:

1. Can receive various BMP, JPG, DXF, PLT, AI and other format files
2. Automatically generate various serial numbers, production date, 1D code, 2D code
3. Support flight marking
4. Support rotary marking
5. Support large-area XY platform automatic segmentation marking.
